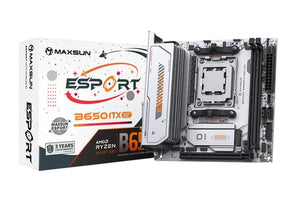

MAXSUN eSport B650ITX Wifi ICE Gaming Motherboard Supports Ryzen 7000/8000/9000 MS-ES-B650ITX-WIFI-ICE

MAXSUN eSport B650ITX WIFI ICE Gaming Motherboard

Model: MS-ES-B650ITX-WIFI-ICE

Overview:

- Compact ITX Build: 170 x 170 mm, ideal for small yet powerful setups.

- AM5 Ready: Supports Ryzen 7000/8000/9000 CPUs, TDP 105-180W.

- DDR5 Performance: Dual slots, up to 96GB, overclocking to 8000 MHz.

- Next-Gen Expansion: PCIe 5.0 x16 slot and dual PCIe 4.0 M.2.

- Seamless Connectivity: WiFi 6, Bluetooth 5.2, and 2.5G LAN.

- Flexible USB Options: USB 3.2, USB 2.0, and 10G Type-C.

- Enhanced Visuals: HDMI 4K @ 30Hz, DP 4K @ 60Hz.

- Built to Perform: RGB lighting, robust cooling, and safety features.

Specifications:

- Audio: Integrated Realtek ALC897 audio chip

- Chipset: AMD® B650 high-speed chipset

- Form Factor: ITX (170 x 170 mm)

- I/O Connectors: Rear I/O: 2 x USB 3.2 Gen 1, 4 x USB 2.0

- Integrated CPU Graphics: 1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz), 1 x DisplayPort (up to 4096 x 2160 @ 60Hz)

- LAN: Integrated Realtek 8125BG/D LAN chip

- PCI Slots: 1 x PCIe 5.0 x16 slot

- Processor Support: AM5, compatible with Ryzen 7000/8000/9000 series processors

- RAM Type/Bus/Max: 2 DIMM DDR5 slots, supporting up to 96GB; Dual-channel support; Frequency Support: 4800/5200/5600(OC)/6000(OC)/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/7800(OC)/8000(OC) MHz

- Socket: AM5, TDP: 105-180W

- Storage Interface: 2 x M.2 slots (supporting 2242/2280 PCIe 4.0 x4/x2 SSDs), 2 x SATA 3.0 ports

- Warranty: 3 Years

- Wireless & Bluetooth: Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2, 1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi
